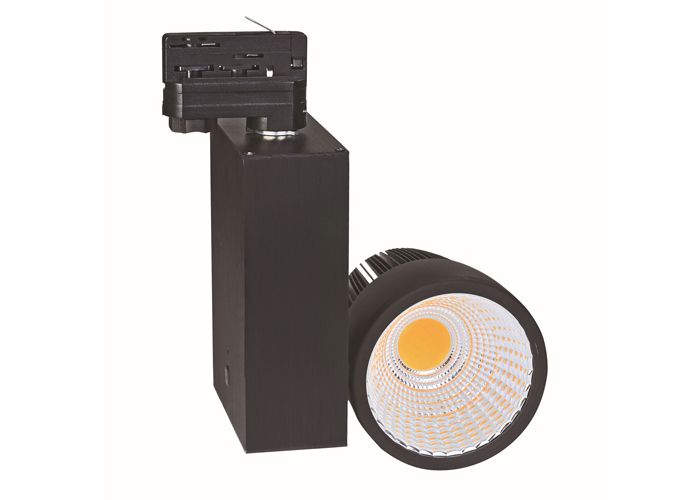

18w Commercial Outdoor Track Lighting White Or Black Housing
Led Track Light
1. energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
2. Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
3 Adopt import light source and advanced heat dissipation technology,product malfunction life span achieve to 50000 hrs.
4. Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
5. Simple & elegant appearance, newly & attractive design, suit for many illumination places.
Product Name | 18W COB Track spotlight | CRI | >80 |
Size Of Panel | 600x600mm | IP Grade | IP20 |
Lumenious Flux | 1530lm | LED Type/Brand | EPISTAR SMD2835 |
Beam Angle | 12° 24° 36° | Average Life-time: | 50000Hours |
CCT | 2700-7000K | PF | >0.95 |
18W COB Track Light Description |
Item No. | LED Quantity | Light Source | Power | Luminous Flux | Size(mm) |
ZLTC30W01 | 1 | Cree/
Citizen/
Bridgelux COB | 18W | Cool White | 2400LM | 120x90x240mm |
Pure white | 2300LM |
Warm White | 2200LM |
Input Voltage : | 100 - 260V AC 50Hz -60Hz |
Power Factor: | ≥0.95 |
LED Chip Type: | Cree/Citizen/Bridgelux COB |
Color Temperature: | 2700-3500K (Warm white), 4000-4500K (Natural White),,6000-6500K(Cold white) |
Color Rendering Index: | Ra>80 |
Beam Angle : | 12° 24° 36° |
Operating Temperature | (-10℃ to +40℃) |
Storage Temperature: | (-20℃ to +85℃) |
Humidity Operating: | 10-80% |
Material : | Super pure aluminum, Highly reflective aluminized |
Lifespan : | 50,000 hours |
Net Weight (kgs): | 1.2kgs |
Electrical Protection:: | Class I |
Fixing Ways: | Track Rail , 4wires /3Phases adaptor |
Certificates: | CE/RoHS |
IP Code: | IP 20 |
Warranty: | 3 Years |
General Application: | Interior use, Commercial, Shop, and Display |
| | | | | | | | |
Features:
Led track light more efficient conduction heat from inside lamp.
High quality led chip.
Performance is stable,safe and reliable.
High color rendering index: >80% .
High light transmittance: >90%.
High Luminous Efficiency.
COB 18W LED Track Light Feature
1. With imported diffuser plate, the light is soft; it’s comfortable by eyes’ view
2. Long life time, up to 50,000 hours
3. With constant current driver, and the performance is stable
4. Instant start-up and Extremely low maintenance cost
5. Easy installation,shock proof and concussion-proof
6. Energy-saving——this new art gallery cob 50w led track light,led tracklight 50w can save 70%-80% energy, compared with traditional Fluorescent tube
7. Low lumen decay, less than 3% in 3000hours working
8. Environmental-friendly:No RF interference and no flickering,No hazard of mercury or lead entering the environment
9. With high quality Taiwan Epistar led chip
Application:
showcase lighting,architectural lighting,decorative lighting,store clothes lighting,shop cothes lighting,car showroom lighting,museum decorative lighting,window shop lighting,business lighting,art lighting,art gallery decorative lighting and so on.
